S-WAY

TECHNICAL SPECIFICATIONS

Artic
Rigid
Product Page S Way Artic 720X414
Axle
Axle
4x2 / 6x2
Wheelbase
Wheelbase (mm)
3,200 – 4,000
Engine
Engine
Cursor 9 8.7L / XCursor 13 12.9L
Transmission
Transmission
12-Speed ZF AMT / 6-Speed Allison AT
Suspension
Suspension
Pneumatic / Full Pneumatic
Cab
AD
Day Cab, Low Roof
AT
Sleeper Cab, Low Roof
AS
Sleeper Cab, High Roof
Designed GVW
Designed GVW
20t - 36t

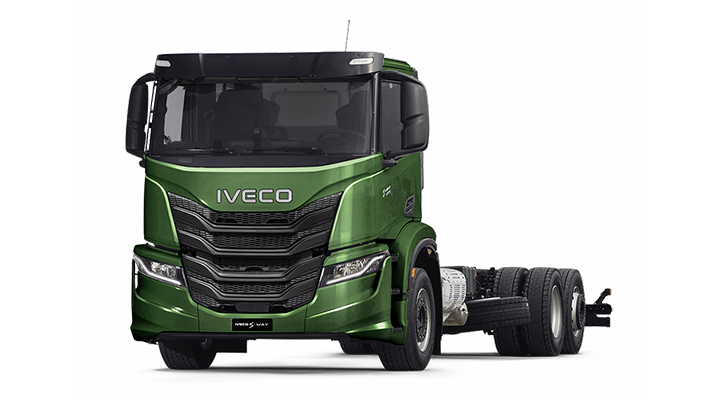

S WAY 720X414.23
Axle
軸型
4x2 / 6x2
Wheelbase
Wheelbase (mm)
3,120 – 6,700
Engine
Engine
Cursor 9 8.7L / XCursor 13 12.9L
Transmission
Transmission
12-Speed ZF AMT / 6-Speed Allison AT
Suspension
Suspension
Pneumatic / Full Pneumatic
Cab
AD
Day Cab, Low Roof
AT
Sleeper Cab, Low Roof
AS
Sleeper Cab, High Roof
Designed GVW
Designed GVW
19t – 26t
Driving Experience

Driving Experience

Latest infotainment, TFT instruments and mirrorless camera

The latest 10-inch or 12-inch full TFT digital cluster is fully reconfigurable and provides an advanced ADAS interface. The integrated infotainment system is compatible with Apple CarPlay and Android Auto.

1 / 2
Driving Experience
Driving Experience

Driving Experience

Driving, work and rest all improved

The redesigned driving console improves ergonomics. A foldable passenger-side table offers a flat work surface and USB charging. The lower console adds a storage shelf, cup holders, and ambient lighting.

2 / 2
Driving Experience
Performance

Performance

New XC13 engine

The new engine line-up, including the XC13, cuts fuel consumption by up to 10%.
Outputs reach 580 hp and 2,800 Nm for heavy-duty performance. Engine weight is down 10%, and durability is rated up to 1.6 million kilometres, 33% higher than the previous model. Strong low-speed torque supports faster rear axle ratios to further reduce fuel use.

1 / 2
Performance
Performance

Performance

High performance engine brake & new driveline

The new High Performance Engine Brake, with lower weight and more than 15% higher braking torque then the standard version, is replacing the Intarder in most missions granting a lower fuel consumption.

Exceptional performance with lower fuel consumption is improved by the new generation 17x rear axle, with faster ratios now available, and the New Traxon 2 transmission.

2 / 2
Performance
